“We knew that this was an important project that would generate interest, but no one was prepared to have to meet peaks of up to 9,000 requests per second.
Support from Cloudmade and OpenGeo was critical in these initial moments, and in my opinion they did an excellent job supporting this launch.”
— Juan Marín Otero, Computech: project lead for the National Broadband Map
When Michael Byrne began his tenure as GIO of the Federal Communications Commission (FCC) he was greeted with significant challenges. A recent congressional mandate made the FCC responsible for creating and delivering a national map of broadband access. This map had to deliver a fast and efficient service, and promote the use of open data sets. Users would gain the means to explore and visualize a vast array of data over high-speed internet connections. Developers would acquire access to a wide range of open data APIs to create their own applications. As if these expectations weren't high enough, Congress placed a one year deadline on the project.

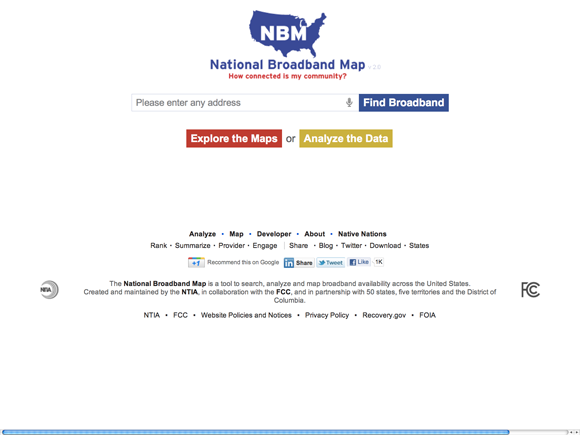

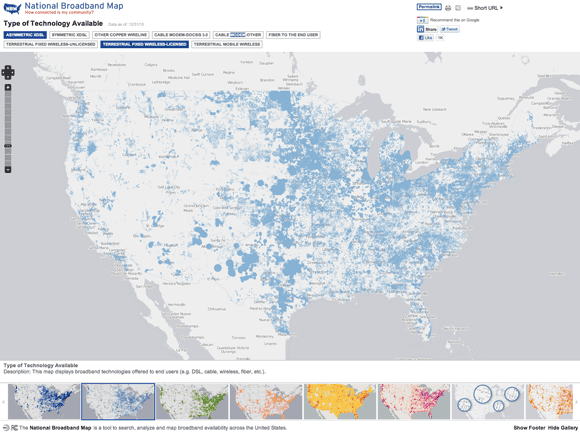

Under the pressure of a congressional deadline, Byrne and his team launched broadband.gov and created the National Broadband Map. The National Broadband Map features open architecture and was built completely with open source tools. The FCC also delivered open data and seven new APIs for querying FCC information. They adopted an open REST architecture to allow direct public access to FCC information.
Juan Marín, the project lead from Computech reflected on the project's early efforts: “First we built a prototype using the proprietary software we already had in-house, which was a good learning experience. While we were able to get a map up and running, the operational complexity we experienced managing the software, and the speed we measured off the prototype, showed we needed to look at a different software solution.”
Development of an Open Source Solution
With only six months until the broadband.gov launch, the team began building out the production site using the OpenGeo Suite of open source software: PostGIS, GeoServer, and OpenLayers. Portions of the prototype, such as the Oracle-based data querying API, were kept and used in production. Other parts, such as the map generation and user interface, were moved to the OpenGeo tools. For development support, the Computech team acquired an OpenGeo Suite support contract.
As the team neared their delivery date, they load tested to ensure they could handle the 100,000 visits they expected when the site launched. However, on launch day, the site was profiled in the New York Times and on morning television shows — on launch-day the actual number of visitors was over 500,000, with a peak load of 9,000 requests per second. The site stayed online, and new mapping servers were pressed into service during to handle the traffic. The technical foundation of broadband.gov is a modular, web-centric approach to architecture:
- Under the covers, database access is via Hibernate, which makes the system database agnostic;
- All data used is exposed via REST web services;
- All mapping is done using OGC-standard protocols; and,
- The front-end user interface of broadband.gov only consumes the public web services, so everything the site displays is open for third party developers to re-mix and mash-up.
© 2011 OpenGeo.
Redistributable under the Creative Commons Attribution-Share Alike license.
